InRouter 302
$149.00 – $178.00
The InHand IR302 stands as a budget-friendly and compact industrial 4G LTE router, featuring two Ethernet ports, dual SIM card holders, and the possibility of an additional Wi-Fi interface. It offers effortless, dependable, and secure connectivity, catering to a broad spectrum of industrial and commercial IoT applications. This industrial cellular router provides a compelling choice for enhanced performance without the associated high costs.

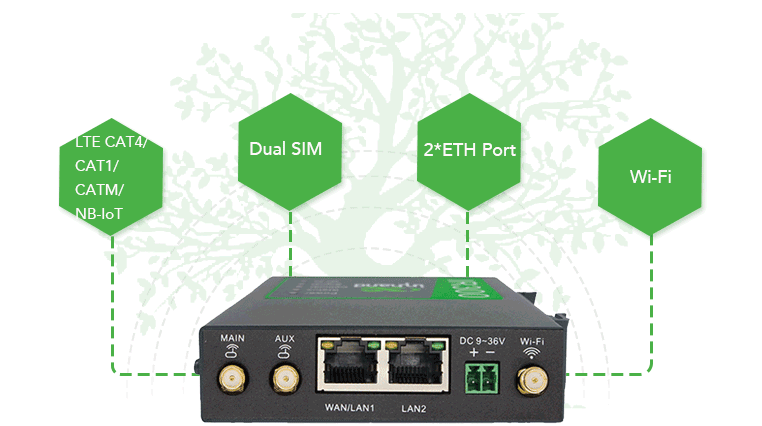

InRouter302 - A compact and easy-to-use LTE Cellular Router
InHand IR302 is a cost-effective, compact industrial 4G LTE router, equipped with two Ethernet ports, dual SIM holders and an optional Wi-Fi interface. It provides easy, reliable, and secure connectivity. This industrial cellular router can be used in a wide range of industrial and commercial IoT applications, giving you an option of better performance but lower cost.
Product Highlights
Compact and Rugged Housing Design LTE VPN Router
Benefit from IR302’s compact design, so the narrow installation space will no longer be a roadblock. Panel mounting and DIN-Rail mounting are available for various deployment scenarios.
Fully Industrial Design
EMC level 2, fan-less cooling, solid metal shell, strong resistance to vibration and shock, effectively reduce fault rate. The industrial LTE router offers high-quality networking solutions for unattended sites and works well even in harsh environments.
Compatible Carriers
IR302 is a convenient plug-and-play router. It will automatically and quickly connect to the network after plugging in the power supply and inserting the SIM cards. It is functionality meets kinds of carriers' access standards from many countries. You can rest assured to use our products for business.
Reliable Network Connection
InRouter300 high-quality network services support multiple link backup types. Wired Wan or WiFi can work as the primary link, cellular LTE networks work as the backup link, and vice versa. The backup link provides for network connectivity if the primary link fails. Furthermore, it can automatically failover to a second SIM card with the dual SIM feature.
Strong Security Protection
The IR302 is designed with comprehensive security protection, including encrypted VPN transmission, firewall protections and multi-level authorization control.
Easy-to-Use Web Interface
The user-friendly web interface will help you with the configuration and management of IR302 more efficiently.
Additional information
| Cellular Module | CAT 4, CAT 1, CAT M/NB-IoT |
|---|---|
| WiFi | WiFi, No WiFi |
| I/O | IO, No IO |
| CPU Platform | 580MHz |
| RAM | 128MB DDR2 |
| Flash | 32MB SPI |
| Interface | |
| Ethernet Port | IR302: 2*10/100Mbps fast Ethernet port, LAN/WAN port 1.5KV network isolation transformer protection |
| Serial Port | 1*RS232 |
| I/O (*Optional) | Supports 2*IO (DO or DI can be configured) |
| Power Supply | DC9- -36V, over-current protection, |
| anti-reverse connection, 2 PIN industrial terminal block | |
| Reset Button | Pinhole reset button |
| SIM Card | Dual drawer-type SIM card slots. 2FF SIM |
| Wi-Fi (Optional) | IEEE 802.1 1b/g/n, 150Mbps |
| Antenna Connector | 3G/4G: SMA x 1 |
| Wi-Fi: RP-SMA x 1 | |
| Note: North American models (FQ38, FQ33) have 2 x SMA 4G antennas. | |
| Ground Terminal | Supports |
| Mechanical Specs | |
| Dimensions (mm) | 90X90x25mm |
| Weight (g) | 240g |
| Installation Method | Panel mounting, rail mounting |
| Protection Rating | IP30 |
| Housing | Metal |
| Cooling | Fanless |
| Power Rate | |
| Working Power | 100-120mA@12V |
| Standby Power | 80-90mA@mA@12V |
| Peak Power | 190mA@12.0V |
| Wi-Fi Transmit Power | |
| Transmit Power | 802.11b: 16dBm +/-2dBm (11Mbps) |
| 802.11g: 16dBm +/-2dBm (54Mbps) | |
| 802.11n@2.4GHz: 16dBm +/-2dBm (HT20 MCS7) | |
| 802.11n@2.4GHz: 16dBm +/-2dBm (HT40 MCS7) | |
| Ambient Environment | |
| Storage Temperature | -40 ~ 85℃ |
| Operating Temperature | -20 ~ 70℃ |
| Ambient Humidity | 5 ~ 95% (non-condensing) |
| Indicator | |
| LED | Power, Status, Cellular, Wi-Fi, cellular Signal |
| EMC | |
| Static | EN61000-4-2, level2 |
| Radiation Electric Field | EN61000-4-3, level 2 |
| Pulsed Electric Field | EN61000-4-4, level 2 |
| Surge | EN61000-4-5,level 2 |
| Conducted Disturbance Immunity | EN61000-4-6, level 2 |
| Shock Wave Resistance | EN61000-4-12, level 2 |
| Power Frequency Magnetic Field Resistance | ; EN61000-4- -8, horizontal I vertical 400A/m (>level 2) |
| Physical Specs | |
| Shockproof | IEC60068-2-27 |
| Vibration Resistance | IEC60068-2-6 |
| Free Fall | IEC60068-2-32 |
